SPECIFICATIONS

AG Glass: Yes

Accuracy: ±0.3mm (Center), ±1mm (Corner)

Active Area: 349.6 x 196.7mm

Battery: 58Wh

Battery Included: Yes

Bluetooth: Bluetooth 5.0

Brand Name: HUION

Brightness: 400nit

CPU: Intel R Core TM i7-1165G7

Camera: 5.0MP (Front-facing camera), 8.0MP (Rear camera)

Certification: CE,KC,weee

Color: Dark Grey

Connectivity Technology: Bluetooth 5.0 / WIFI 6

Contrast Ratio: 1200:1

Digital Pen: Battery-free Slim Pen PW550S

Dimension: 384 x 234 x 11.9mm

Display Color: 16.7M(8bit)

Finger Touch: 10 Points Capacitive Touch

Full Lamination: Yes

Gamut Coverage: 100% AdobeRGB

Graphics: Intel R Iris R Xe Graphics

HUION Model: KS1601

HUION Product Name: Kamvas Studio 16

High-concerned chemical: None

Input Voltage: 100-240VAC, 50/60Hz, 1.8A

Interface: Full-featured USB-C x 2, 3.5mm Audio Jack x 1

Interface Type: Bluetooth

LCD Type: IPS

Microphone: Dual microphones

Operating System: Windows 11 Professional

Origin: Mainland

Output Voltage: 5V 3A; 9V 3A; 12V 3A; 15V 3A; 20V 3.25A

Package: Yes

Panel Size: 15.8 inch

Pen Technology: Battery-Free Electromagnetic Resonance

Press Keys: Power, Volume

Pressure Levels: 8192

RAM: 16GB DDR4

Reading Height: 10mm

Report Rate: 300PPS

Resolution: 2560 x 1440 (16:9)

Resolution Ratio: 5080lpi

Response Time: 14ms

Screen Resolution: 2560 x 1440

Screen Size(diagonal): 15.6"

Sensor: Fingerprint Sensor, Gravity Sensor, Hall Voltage Sensor

Speaker: 2W x 2

Special Feature: Independent, work as a laptop/ a tablet / a pen display

Stand: Built-in Kickstand, Foldable Stand ST200

Storage: 512G SSD

Storage Temp. and Humidity: -20°C~60°C, 10-90%

Tilt Recognition: 60 degree

Type: Pen Tablet Monitor,U1200

What's in the box: Kamvas Studio 16, Digital Pen PW550S, USB-PD Power Adapter(65W), USB-C Cable, Pen Case PB02, Felt Pen Nib x 3, Standard Pen Nib x 3, Foldable Stand ST200, Cleaning Cloth ,Quick Start Guide, Anti-touch Glove

Wireless Type: Wifi 6

Working Temp. and Humidity: 0-40°C, 20-80%

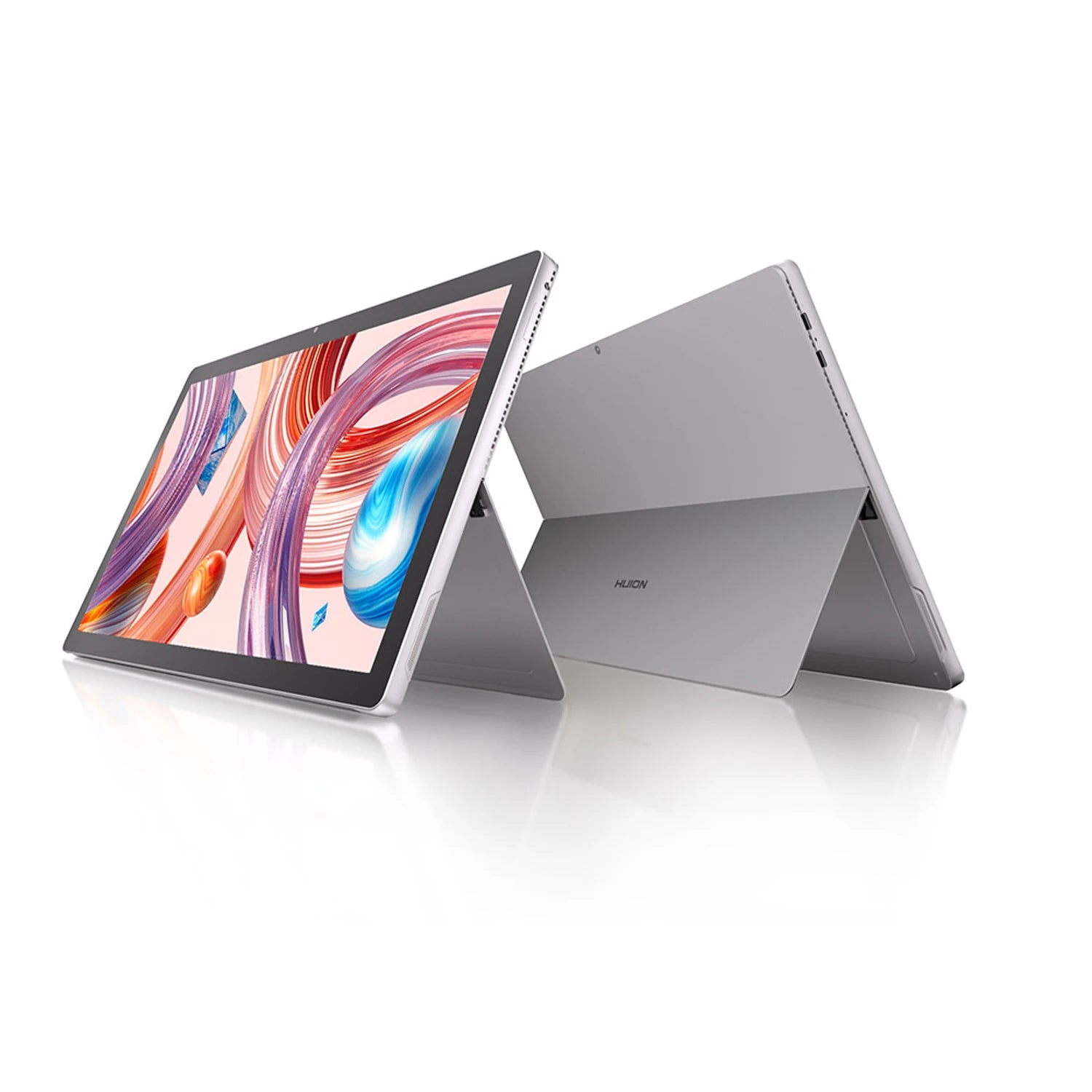

Kamvas Studio 16

A Portable Desktop for Creators

Kamvas Studio 16 is a new generation of Huion pen computer. The 15.8-inch 2.5K display, the latest Huion PenTech 3.0+ technology, multi-point capacitive touch, and full-featured Type-C ports make it an ideal portable pen computer for today's hybrid work situation.

• As a Laptop, for browsing websites and playing video games.

• As a Tablet, for watching movies and editing documents.

• As a Pen Display, for drawing, graphic design and video editing.

A Visual Feast!

The QHD (2560 x 1440) resolution delivers sharp details on this 15.8-inch display to make graphics clearer. Based on QLED technology, 100% Adobe RGB Color Gamut Coverage, and 16.7M (8Bit) Color Depth, Kamvas Studio 16 is an excellent monitor that visually provides users with an immersive gaming experience.

Processor & Graphic Card, Power Up Your Creativity

The Intel® Core™ i7-1165G7 processor allows Kamvas Studio 16 to run all creative software well with cutting-edge speed. And Intel® Iris® Xe graphics card provides smooth graphics performance. Besides, Windows 11 Professional support will maximize your productivity.

Multi-Touch, Another Way to Efficiency

This 10-point capacitive touch screen supports using different gestures to achieve diverse functions in each piece of software, vastly boosting work efficiency. You can set more shortcuts by accessing the Quick Menu in the driver.

WiFi 6 & Bluetooth 5.0, Faster, More Stable

Wi-Fi 6 technology provides users with 2.4 Gbps ceiling speeds, which contributes to smoother website browsing as well as video conferencing and online education. Bluetooth 5.0 offers precise location tracking and a more reliable wireless connection over a longer distance with minimal power consumption.

Full Featured USB-C Ports

Kamvas Studio 16 has two full featured USB-C ports for Transferring audio, video, and data, as well as charging and connecting the docking station. For instance, you can enhance working productivity with and external 4K monitor.

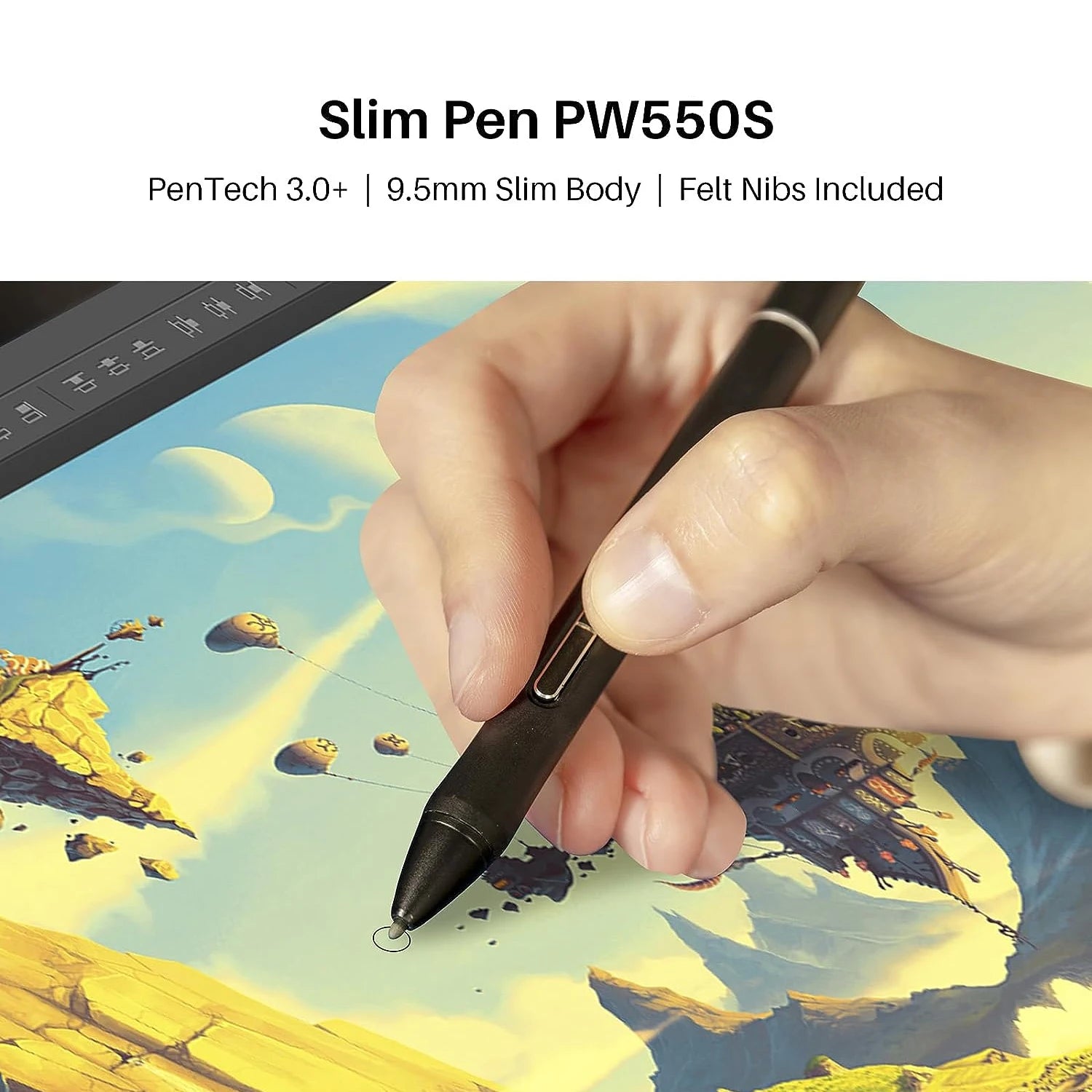

PenTech 3.0+, Slim, More Comfortable

Thanks to the pencil-like body, the new pen, PW550S, is friendly for long periods of use. Powered by the latest Huion PenTech 3.0+ technology, it will offer you a more linear pressure sensitivity, thus getting a more realistic drawing experience to motivate your creativity.

Keep Going For Hours On End

Kamvas Studio 16 lasts nearly 6 hours of continuous usage and can be fully charged in 2 hours with the 65W PD power adapter. You can also charge your phone or tablet with the 15W reverse charging.
