SPECIFICATIONS

AC adapter: DC 12V 3A/36W

Brand Name: Helorpc

COM: 2xRS232

Certification: CE,FCC,RoHS

Cooling System: Fanless Passive Cooling

Dimension: 134*124*34mm

Expansion: 1xMini-PCIE

Graphics Card Type: Integrated Card

Hard Drive Capacity: 128GB

Hign-concerned Chemical: None

Installation: VESA/wall mounted/desktop

Memory Capacity: 8GB

Model Number: X30A

Origin: Mainland China

PC Case: Aluminum alloy

Processor Brand: Intel

Processor Main Frequency: Depend on CPU

Processor Model: N2840/N2930/J1900/J2900

RAM: DDR3L

Storage: mSATA SSD or 2.5 inch SSD/HDD

Support OS: Windows7/Windows8/Windows10/Ubuntu/LINUX/CENTOS

Type: Mini Desktop,MINI PC

Use: Multimedia

Video Output: HDMI, VGA

Note: Brazilian customers are better to buy them one by one, because the shipping cost will be cheaper and it is also good for customs clearance.

Specification
General	Brand: HLY Type: Mini PC Processor: In-tel Celeron Processor J1900,2M Cache, up to2.40 GHz,4 Core 4 threads,TDP:10W In-tel Pentium Processor J2900,2M Cache, up to 2.70GHz,4 Cores 4 threads,TDP:10W In-tel Celeron Processor N2930,2M Cache, up to 2.20 GHz,4 Core 4 threads,TDP:7.5W In-tel Celeron Processor N2840,1M Cache, up to 2.60 GHz,2 Cores 2 threads,TDP:7.5W GPU: In-tel H-D Graphics for In-tel Atom Processor Z3700 Series RAM Type: 1 x DDR3L (Low voltage 1.35V) Ram slot, 2G, 4G, 8G Ram for optional Hard Disk type: Support mSATA and 2.5' inch SATA, 30G, 60G, 120G, 250G,500G SSD and 1TB HDD for optional. WIFI:mPCIe( half-size) 300M for optional
















Product detail	Onboard LAN:10/100/1000/ Mbps Realtek 8111F Audio Card:high Definition Realtek ALC662 audio control chip WiFi:With dual antenna, 802.11.b/g/n System:window10/7/ 8/ Linux. Color: Black(Other color support customized) Cooling system: Fanless

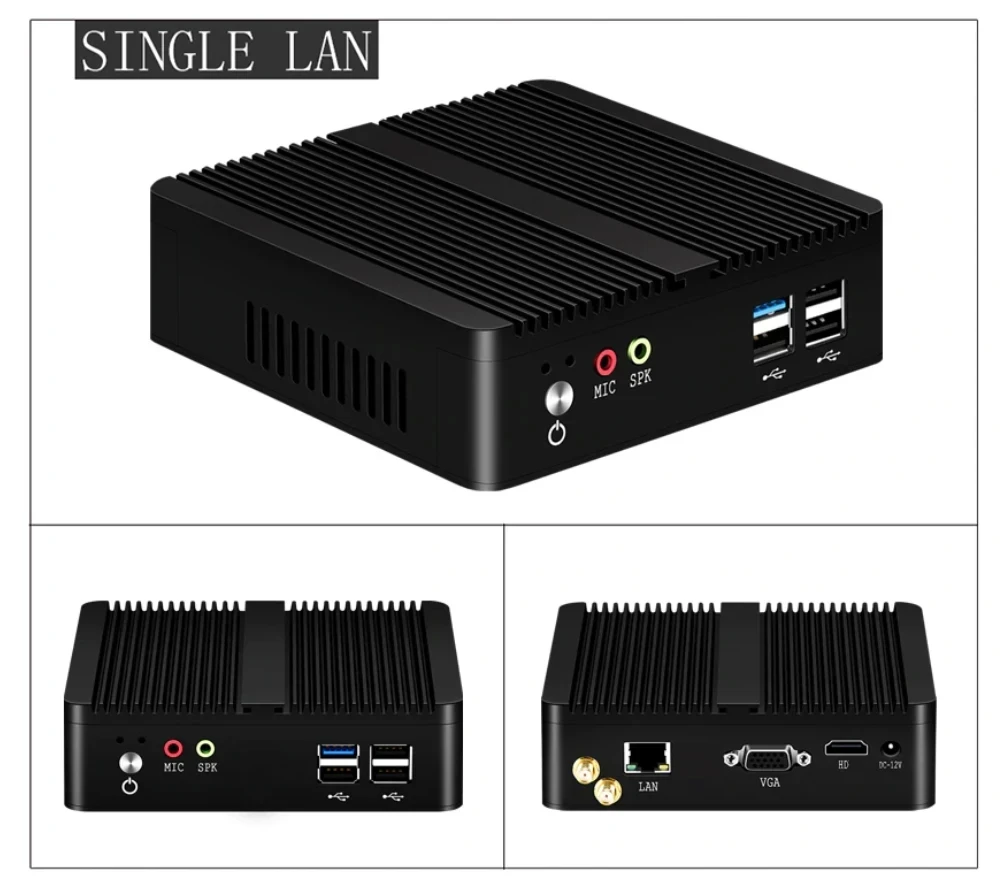

Port	3xUSB2.0 1xUSB3.0 1xVGA 1xH-D 2xLAN 1xMIC and SPK 1x Switch 2xCOM(RS232)
Power Requirement	Power Type: External Power Adapter Mode Power Input Vol: 12V Power Input Ampere:5A
Working Environment	Operating Temperature :-20℃-80℃ Storage Temperature: 0℃-80℃ Relative Humidity :10%~90% (non-condensing)
Dimension	13612639mm

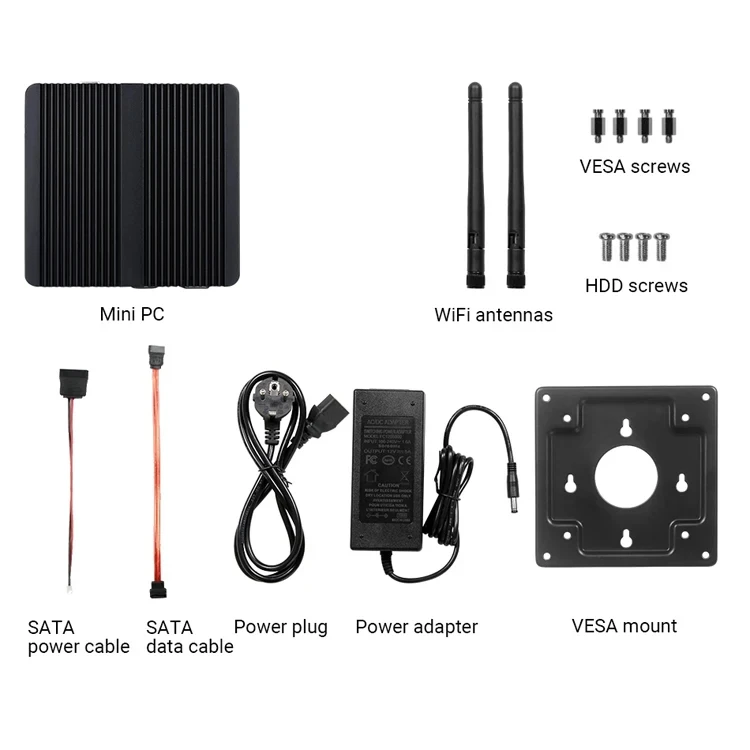

Package Contents	1 x Mini PC 1 x User manual 1 x Power adapter 1 x VESA mount 1 x WIFI Antenna(Except Barebone computer)
